Addressable, Conventional, and Wireless Fire Alarm Systems

Introducing Teletek solution high-tech fire alarm solutions that meet the highest standards of safety. Our products have been delivering reliable, effective protection for thousands of commercial, industrial, and residential sites around the world for the past 3 decades. We provide complete solutions – central units, detectors, software, cloud services, and both wired and wireless options – all built to work seamlessly and reliably together.

With every product we create, we empower our partners and clients to protect lives, property, and peace of mind – no matter the environment.

Addressable System

Panel MCFA

https://konexindo.co.id/wp-content/uploads/2025/12/SIMPO-840x840-1.png

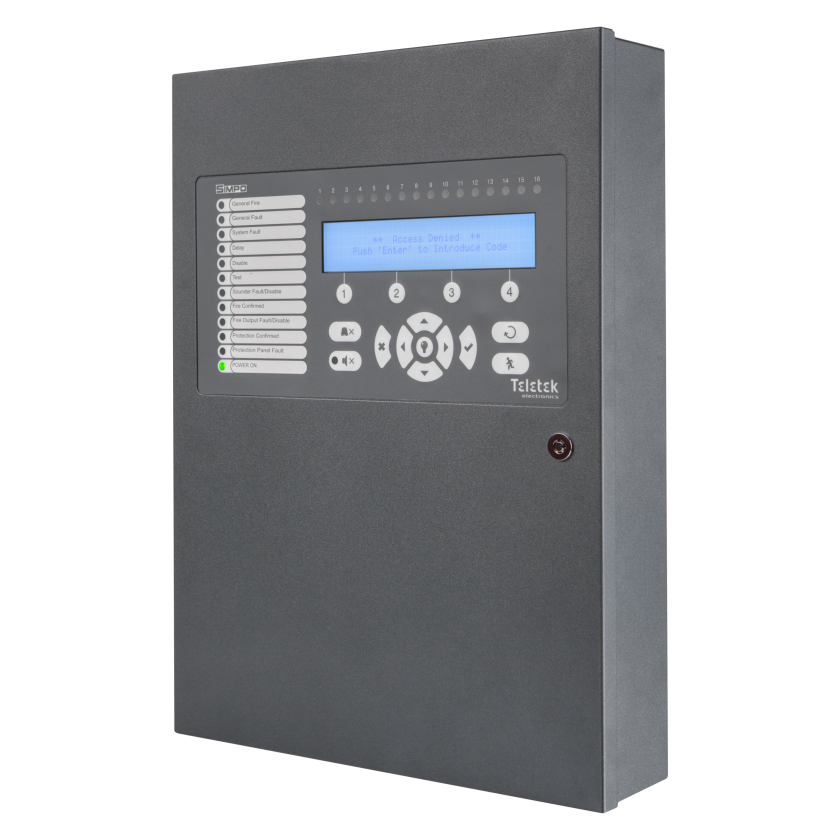

Simpo Panel

SIMPO is the perfect solution for smaller addressable installations.
The addressable fire alarm panel supports up to
– 2 loops with coverage of 48 zones.
– 250 devices operating on Teletek Electronics communication protocol could be connected to each loop.

Loops: Up to 2 (TTE protocol)
Devices per loop: 250
Zones: 48
Inputs: 3
Panels in RS485 redundant network (optional module): Up to 64
Display: 4*40 symbols LCD
Standard: EN54 – 2/4
Transmitting events to monitoring software Observer via LAN channel (ModBUS protocol)

Full Datasheet

https://konexindo.co.id/wp-content/uploads/2025/12/iRIS4-1-840x840-1.png

iRIS4 Panel

The iRIS4 addressable fire alarm panel offers a huge variety of functionalities, which help the installers for any type of installations – from small to large buildings. iRIS4 fits up to 4 loops and has a maximum coverage of 96 zones. Up to 250 devices can be connected to every system loop, with a total of 1000 for the whole system.

Expandable from 1 to 4 loop controllers
1000 devices per system
5” TFT (color) display
Multilanguage menu
96 Zone LED Indicators
ModBUS TCP/IP protocol
Build-in LAN network card

Full Datasheet

https://konexindo.co.id/wp-content/uploads/2025/12/iRIS8-B-840x840-1.png

iRIS8 Panel

The iRIS8B addressable fire alarm panel has the possibility to integrate eight loop expanders into a single system, which makes it suitable for use in small to large buildings and installations. With the possibility to communicate via ModBUS protocol, the panel becomes easy to integrate into a Building Management System (BMS) for so-called “smart buildings”.

Expandable from 1 to 8 loop controllers
2000 devices per system
7” TFT Touch Screen
Multilanguage menu
200 Zone LED Indicators
ModBUS TCP/IP protocol
Build-in LAN network card

Full Datasheet

https://konexindo.co.id/wp-content/uploads/2025/12/IRIS-SIMPO-TFT-REPEATER-Copy.png

Repeater IRIS/Simpo

The Repeater fire alarm panel is designed to work with Teletek Electronics analogue-addressable fire
alarm panels iRIS4, iRIS8 and SIMPO. It is used to display the events of the connected to network
analogue-addressable panels, as well as set commands to the other panels in the network.

Built-in RS485 module
64 Maximum number of supported panels in network
Send/Receive commands and messages
Built-in buzzer for sound signalization
Multi language support
IP40 Protection class
Redundant network type

Full Datasheet

Detector Addressable

https://konexindo.co.id/wp-content/uploads/2025/12/SensoIRIS-T110-S130-2.png

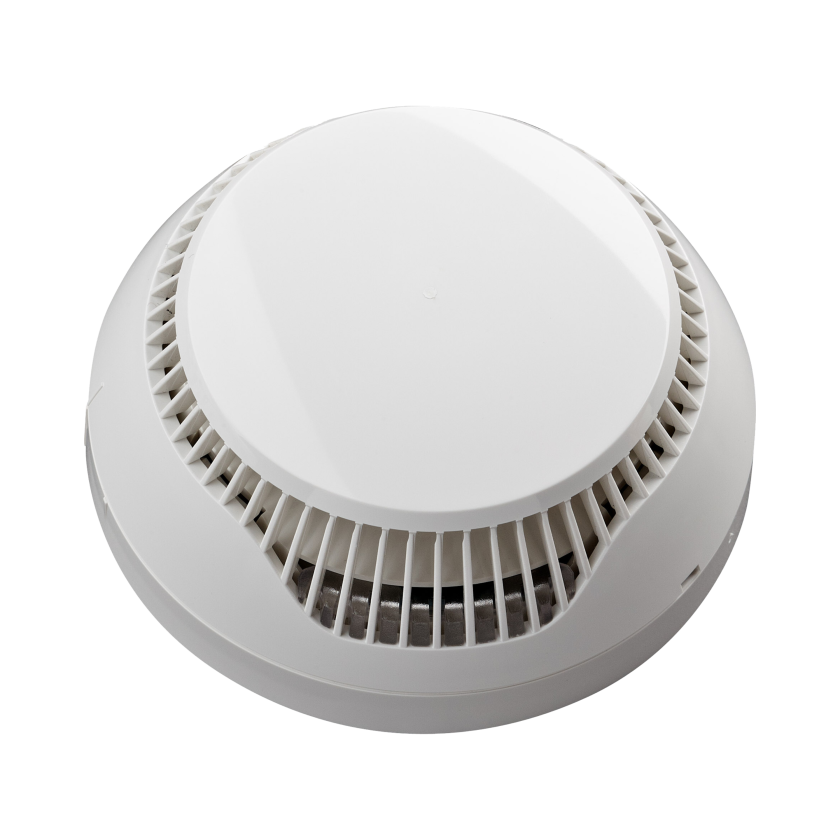

SensoIRIS T110 IS

SensoIRIS T110 IS is аn addressable heat detector with built-in isolator designed for installation in addressable fire alarm systems supporting TTE communication protocol.

Can work as a fixed temperature or rate of rise detector
Class, selectable from the control panel – A1/R, A2/S, B/S
Low profile design
LED indication with 360° visibility
Built-in isolator
EN54-5 and EN54-17 certified

Full Datasheet

SensoIRIS S130 IS

SensoIRIS S130 IS is аn addressable optical-smoke detector with built-in isolator designed for installation in addressable fire alarm systems supporting TTE communication protocol.

Sensitivity level selectable from the control panel – High/Normal/Middle/Low
Low profile design
Led indication with 360° visibility
Built-in isolator
EN54-7 and EN54-17 certified

https://konexindo.co.id/wp-content/uploads/2025/12/SensoIRIS-M140-M140-IS-1.png

SensoIRIS M140 IS

SensoIRIS M140 IS is an addressable combined (temperature and optical-smoke) detector with built-in isolator, designed for installation in addressable fire alarm systems supporting TTE communication protocol.
